Outdoor Combi Standard - Condensing

Key benefits

  • OUTSIDE ACCESS FOR SERVICING
  • HIGH EFFICIENCY
  • HIGH QUALITY CASING CORROSION RESISTANT
  • MULTI DIRECTIONAL FLUE OUTLET
  • PLASTIC FLUE RANGE UP TO 41 KW CONDENSING ONLY
  • FROST STAT FITTED FOR PROTECTION
  • NO INTERNAL OIL LINE
  • PRE PUNCHED PIPE ACCESS POINT
  • CAN BE USED IN TANDEM OPERATIONS
  • FROST STAT FITTED FOR PROTECTION
  • NON-CONDENSING MODEL AVAILABLE
KW 15 - 20
BTU 50 - 70,000
Size (mm) H895mm x W635mm x D680mm
Weight 200kg
ERP
Heat Class A
Water Class XL-B
KW 20 - 26
BTU 70 - 90,000
Size (mm) H895mm x W635mm x D680mm
Weight 200kg
ERP
Heat Class A
Water Class XL-B
KW 26 - 35
BTU 90 - 120,000
Size (mm) H895mm x W635mm x D680mm
Weight 200kg
ERP
Heat Class A
Water Class XXL-B
Exclusive To Mistral
KW 35 - 41
BTU 120 - 140,000
Size (mm) H895mm x W635mm x D680mm
Weight 200kg
ERP
Heat Class A
Water Class XXL-B

Boiler Information

The Mistral Outdoor Combi Standard boiler range provides for a highly efficient full heating and instant domestic hot water facility. The boiler is fully insulated in a weather resistant casing that is zinc phosphated for optimum corrosion protection and then polyester coated in a highly durable green texture finish to allow the unit to blend naturally with foliage and other external surroundings. All outdoor models are fitted with a frost stat.
If you are in any doubt about water performance, our CC4 can produce nearly TWICE as much hot water as anyone else`s Combi.

Supplied complete with a multi-directional flue, pre-punched pipe entry points on the back and both sides the stand alone units provide for easy and quick installation. Mistral outdoor boilers have a lockable cabinet door. Servicing can be completed without the need to access the residential area of the property. Backed by the Mistral guarantee of quality the Outdoor Standard boiler range provides a space saving practical heating and domestic hot water solution for the domestic and commercial type business.

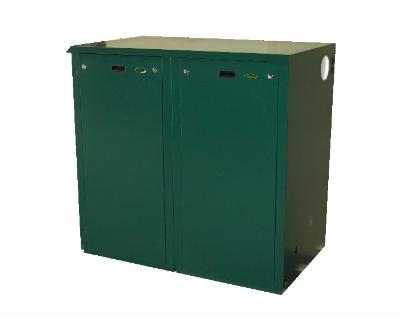

Outdoor Mega Combi Standard - Condensing

Key benefits

  • OUTSIDE ACCESS FOR SERVICING
  • HIGH EFFICIENCY
  • 41 - 70 kw
  • FRONT SERVICING
  • HIGH QUALITY CASING CORROSION RESISTANT
  • MULTI DIRECTIONAL FLUE OUTLET
  • PRE PUNCHED PIPE ACCESS POINTS
  • CAN BE USED IN TANDEM OPERATIONS
  • FROST STAT FITTED FOR PROTECTION
  • NON-CONDENSING MODEL AVAILABLE
Exclusive To Mistral
KW 41 - 50
BTU 140 - 170,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 395kg
ERP
Heat Class A
Water Class XXL-B
Exclusive To Mistral
KW 50 - 58
BTU 170 - 200,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 395kg
ERP
Heat Class A
Water Class XXL-B
Exclusive To Mistral
KW 58 - 70
BTU 200 - 240,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 395kg
ERP
Heat Class A
Water Class XXL-B

Boiler Information

The Mistral Mega Combi Standard Outdoor range provides for a highly efficient full heating and instant domestic hot water facility for the larger type installations such as barn conversations and country houses. The boiler is fully insulated in a weather resistant casing that is zinc phosphated for optimum corrosion protection and then polyester coated in a highly durable green texture finish to allow the unit to blend naturally with foliage and other external surroundings. All outdoor models are fitted with a frost stat. The Mega Combi models are housed in double width high-quality green texture casing supplied in two parts for easy handling.

Supplied complete with a multi-directional flue, pre-punched pipe entry points on the back and both sides the stand alone units provide for easy and quick installation. Mistral outdoor boilers have a lockable cabinet door. Servicing can be completed without the need to access the residential area of the property. Backed by the Mistral guarantee of quality the Outdoor Standard boiler range provides a space saving practical heating and domestic hot water solution for the domestic and commercial type business.

Outdoor Combi Standard - Non-Condensing

Key benefits

  • OUTSIDE ACCESS FOR SERVICING
  • STANDARD EFFICIENCY
  • 15 - 41 kw
  • FRONT SERVICING
  • HIGH QUALITY CASING CORROSION RESISTANT
  • MULTI DIRECTIONAL FLUE OUTLET
  • PRE PUNCHED PIPE ACCESS POINTS
  • FROST STAT FITTED FOR PROTECTION
  • CAN BE USED IN TANDEM OPERATIONS
KW 15 - 20
BTU 50 - 70,000
Size (mm) H895mm x W635mm x D680mm
Weight 185kg
ERP
Heat Class B
Water Class XL-B
KW 20 - 26
BTU 70 - 90,000
Size (mm) H895mm x W635mm x D680mm
Weight 185kg
ERP
Heat Class B
Water Class XL-B
KW 26 - 35
BTU 90 - 120,000
Size (mm) H895mm x W635mm x D680mm
Weight 185kg
ERP
Heat Class B
Water Class XXL-B
Exclusive To Mistral
KW 35 - 41
BTU 120 - 140,000
Size (mm) H895mm x W635mm x D680mm
Weight 185kg
ERP
Heat Class B
Water Class XXL-B

Boiler Information

The Mistral Outdoor Combi Standard boiler range provides for a highly efficient full heating and instant domestic hot water facility. The boiler is fully insulated in a weather resistant casing that is zinc phosphated for optimum corrosion protection and then polyester coated in a highly durable green texture finish to allow the unit to blend naturally with foliage and other external surroundings. All outdoor models are fitted with a frost stat.
If you are in any doubt about water performance, our CC4 can produce nearly TWICE as much as hot water anyone else`s Combi

The multi-directional flue outlet options together with pre-punched pipe entry points on both the sides and the back allow for easy and quick installation. Mistral outdoor boilers have a lockable cabinet door. Servicing can be completed without the need to access the residential area of the property. Backed by the Mistral guarantee of quality the Outdoor Standard boiler range provides a space saving practical heating and domestic hot water solution for the small to mid-size home.
To ensure maximum efficiency, the Mistral Non-Condensing range is manufactured using the same centrally located Y Section waterway heat exchanger, as used in the High-Efficiency Condensing models. With the exception of the top mounted condensing unit, all components used, are the same for both, ensuring maximum benefit, efficiency and construction advantages are maintained.
To facilitate low-level options, a spacer is available in place of the Condensing unit.
** Please see our section headed Condensing / Non-Condensing, to ensure that these products are suitable for your property.

Outdoor Mega Combi Standard - Non-Condensing

Key benefits

  • OUTSIDE ACCESS FOR SERVICING
  • STANDARD EFFICIENCY
  • 41 - 70 kw
  • FRONT SERVICING
  • HIGH QUALITY CASING CORROSION RESISTANT
  • MULTI DIRECTIONAL FLUE OUTLET
  • PRE PUNCHED PIPE ACCESS POINTS
  • FROST STAT FITTED FOR PROTECTION
  • CAN BE USED IN TANDEM OPERATIONS
Exclusive To Mistral
KW 41 - 50
BTU 140 - 170,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 380kg
ERP
Heat Class B
Water Class XXL-B
Exclusive To Mistral
KW 50 - 58
BTU 170 - 200,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 380kg
ERP
Heat Class B
Water Class XXL-B
Exclusive To Mistral
KW 58 - 70
BTU 200 - 240,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 380kg
ERP
Heat Class B
Water Class XXL-B

Boiler Information

The Mistral Mega Combi Standard range provides for a highly efficient full heating and instant domestic hot water facility for the larger type installations such as barn conversations and country houses. The Mega Combi models are housed in double width high-quality white casing supplied in two parts for easy handling. Can run up to 35 litres / min. WOW.

The multi directional flue outlet options together with pre punched pipe entry points on both the sides and the back allow for easy and quick installation fit up.
Mistral outdoor boilers have a lockable cabinet door. Servicing can be completed without the need to access the residential area of the property. Backed by the Mistral guarantee of quality the Outdoor Mega Combi boiler range provides a space saving practical heating and domestic hot water solution for the larger home and commercial type business.

To ensure maximum efficiency, the Mistral Non-Condensing range is manufactured using the same centrally located Y Section waterway heat exchanger, as used in the High-Efficiency Condensing models. With the exception of the top mounted condensing unit, all components used, are the same for both, ensuring maximum benefit, efficiency and construction advantages are maintained.
To facilitate low-level options, a spacer is available in place of the Condensing unit.
** Please see our section headed Condensing / Non-Condensing, to ensure that these products are suitable for your property.

Outdoor Combi Plus - Condensing

Key benefits

  • OUTSIDE ACCESS FOR SERVICING
  • HIGH EFFICIENCY
  • 15 - 41 kw
  • 7 DAY 2 TIME ZONE PREOGRAMMER
  • IMMERSION BACK UP IN CASE OF BREAKDOWN
  • FRONT SERVICING
  • HIGH QUALITY CASING CORROSION RESISTANT
  • MULTI DIRECTIONAL FLUE OUTLET
  • PLASTIC FLUE RANGE UP TO 41 KW CONDENSING ONLY
  • PRE PUNCHED PIPE ACCESS POINTS
  • FROST STAT FITTED FOR PROTECTION
  • CAN BE USED IN TANDEM OPERATIONS
  • NON-CONDENSING MODEL AVAILABLE
Exclusive To Mistral
KW 15 - 20
BTU 50 - 70,000
Size (mm) H895mm x W635mm x D680mm
Weight 195kg
ERP
Heat Class A
Water Class XL-B
Exclusive To Mistral
KW 20 - 26
BTU 70 - 90,000
Size (mm) H895mm x W635mm x D680mm
Weight 195kg
ERP
Heat Class A
Water Class XL-B
Exclusive To Mistral
KW 26 - 35
BTU 90 - 120,000
Size (mm) H895mm x W635mm x D680mm
Weight 195kg
ERP
Heat Class A
Water Class XXL-B
Exclusive To Mistral
KW 35 - 41
BTU 120 - 140,000
Size (mm) H895mm x W635mm x D680mm
Weight 195kg
ERP
Heat Class A
Water Class XXL-B

Boiler Information

The Mistral Combi Plus boasts all the features of the Combi Standard model but has the additional feature of an integral 230V electric immersion heater installed in the boiler heat store. In the event of an oil failure or when it is not required to fully operate the boiler, the immersion heater provides a backup supply of domestic hot water.
The boiler is fully insulated in a weather resistant casing that is zinc phosphated for optimum corrosion protection and then polyester coated in a highly durable green texture finish to allow the unit to blend naturally with foliage and other external surroundings. All outdoor models are fitted with a frost stat.
If you are in any doubt about water performance, our CC4 can produce nearly TWICE as much hot water as anyone else`s Combi.

The Combi Plus models are also supplied with a factory fitted 7 day programmer allowing 2 individual daily time zones to be selected. Supplied complete with a multi-directional flue, pre-punched pipe entry points on the back and both sides the stand alone units provide for easy and quick installation. Mistral outdoor boilers have a lockable cabinet door. Servicing can be completed without the need to access the residential area of the property. Backed by the Mistral guarantee of quality the Outdoor Combi Plus boiler range provides a space saving practical heating and domestic hot water solution.

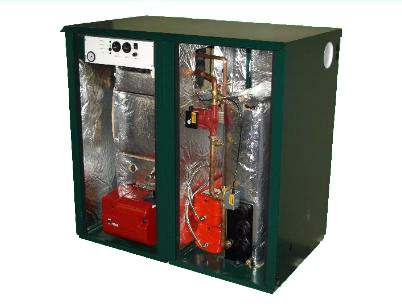

Outdoor Mega Combi Plus - Condensing

Key benefits

  • OUTSIDE ACCESS FOR SERVICING
  • HIGH EFFICIENCY
  • 41 - 70 kw
  • 7 DAY 2 TIME ZONE PROGRAMMER
  • IMMERSION BACK UP IN CASE OF BREAKDOWN
  • FRONT SERVICING
  • HIGH QUALITY CASING CORROSION RESISTANT5
  • MULTI DIRECTIONAL FLUE OUTLET
  • PRE PUNCHED PIPE ACCESS POINTS
  • FROST STAT FITTED FOR PROTECTION
  • CAN BE USED IN TANDEM OPERATIONS
  • NON-CONDENSING MODEL AVAILABLE
Exclusive To Mistral
KW 41 - 50
BTU 140 - 170,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 400kg
ERP
Heat Class A
Water Class XXL-B
Exclusive To Mistral
KW 50 - 58
BTU 170 - 200,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 400kg
ERP
Heat Class A
Water Class XXL-B
Exclusive To Mistral
KW 58 - 70
BTU 200 - 240,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 400kg
ERP
Heat Class A
Water Class XXL-B

Boiler Information

The Mistral Combi Plus boasts all the features of the Combi Standard model but has the additional feature of an integral 230V electric immersion heater installed in the boiler heat store. In the event of an oil failure or when it is not required to fully operate the boiler, the immersion heater provides a backup supply of domestic hot water.

The Outdoor Combi Plus models are also supplied with a factory fitted 7 day programmer allowing 2 individual daily time zones to be selected. Supplied complete with a multi-directional flue, pre-punched pipe entry points on the back and both sides the stand alone units provide for easy and quick installation. Mistral outdoor boilers have a lockable cabinet door.
Servicing can be completed without the need to access the residential area of the property. Backed by the Mistral guarantee of quality the Outdoor Combi Plus boiler range provides a space saving practical heating and domestic hot water solution.
Backed by the Mistral guarantee of quality the Combi Plus boiler range provides an ideal boiler choice for installations where it is important to maintain a domestic hot water supply at all times.

Outdoor Combi Plus - Non-Condensing

Key benefits

  • OUTSIDE ACCESS FOR SERVICING
  • STANDARD EFFICIENCY
  • 15 - 41 kw
  • FRONT SERVICING
  • HIGH QUALITY CASING CORROSION RESISTANT
  • MULTI DIRECTIONAL FLUE OUTLET
  • PRE PUNCHED PIPE ACCESS POINTS
  • FROST STAT FITTED FOR PROTECTION
  • CAN BE USED IN TANDEM OPERATIONS
Exclusive To Mistral
KW 15 - 20
BTU 50 - 70,000
Size (mm) H895mm x W635mm x D680mm
Weight 180kg
ERP
Heat Class B
Water Class XL-B
Exclusive To Mistral
KW 20 - 26
BTU 70 - 90,000
Size (mm) H895mm x W635mm x D680mm
Weight 180kg
ERP
Heat Class B
Water Class XL-B
Exclusive To Mistral
KW 26 - 35
BTU 90 - 120,00
Size (mm) H895mm x W635mm x D680mm
Weight 180kg
ERP
Heat Class B
Water Class XXL-B
Exclusive To Mistral
KW 35 - 41
BTU 120 -140,000
Size (mm) H895mm x W635mm x D680mm
Weight 180kg
ERP
Heat Class B
Water Class XXL-B

Boiler Information

The Mistral Combi Plus boasts all the features of the Combi Standard model but has the additional feature of an integral 230V electric immersion heater installed in the boiler heat store. In the event of an oil failure or when it is not required to fully operate the boiler, the immersion heater provides a backup supply of domestic hot water.
Read more +
The Combi Plus models are also supplied with a 7 day programmer allowing 2 individual daily time zones to be selected. Backed by the Mistral guarantee of quality the Combi Plus boiler range provides an ideal boiler choice for installations where it is important to maintain a domestic hot water supply at all times.
The Mistral Combi Standard Efficiency boiler range provides for a highly efficient full heating and instant domestic hot water facility. If you are in any doubt about water performance, our CC4 can produce nearly TWICE as much as hot water anyone else`s Combi.

The multi-directional flue outlet options together with pre-punched pipe entry points on both the sides and the back allow for easy and quick installation. The removable front casing permits easy access for commissioning and future service. Backed by the Mistral guarantee of quality the Combi Standard boiler range provides a practical heating and hot water facility for the small to mid-size home.
To ensure maximum efficiency, the Mistral Non-Condensing range is manufactured using the same centrally located Y Section waterway heat exchanger, as used in the High-Efficiency Condensing models. With the exception of the top mounted condensing unit, all components used, are the same for both, ensuring maximum benefit, efficiency and construction advantages are maintained.
To facilitate low-level options, a spacer is available in place of the Condensing unit.
** Please see our section headed Condensing / Non-Condensing, to ensure that these products are suitable for your property.

Outdoor Mega Combi Plus - Non-Condensing

Key benefits

  • STANDARD EFFICIENCY
  • 41 - 70 kw
  • FRONT SERVICING
  • HIGH QUALITY CASING
  • MULTI DIRECTIONAL FLUE OUTLET
  • PRE PUNCHED PIPE ACCESS POINTS
  • FROST STAT FITTED FOR PROTECTION
  • CAN BE USED IN TANDEM OPERATIONS
Exclusive To Mistral
KW 41 - 50
BTU 140 - 170,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 385kg
ERP
Heat Class B
Water Class XXL-B
Exclusive To Mistral
KW 50 - 58
BTU 170 - 200,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 385kg
ERP
Heat Class B
Water Class XXL-B
Exclusive To Mistral
KW 58 - 70
BTU 200 - 240,000
Size (mm) H1245mm x W1100mm x D810mm
Weight 385kg
ERP
Heat Class B
Water Class XXL-B

Boiler Information

The Mistral Combi Plus boasts all the features of the Combi Standard model but has the additional feature of an integral 230V electric immersion heater installed in the boiler heat store. In the event of an oil failure or when it is not required to fully operate the boiler, the immersion heater provides a backup supply of domestic hot water.

The Combi Plus models are also supplied with a 7 day programmer allowing 2 individual daily time zones to be selected. Backed by the Mistral guarantee of quality the Combi Plus boiler range provides an ideal boiler choice for installations where it is important to maintain a domestic hot water supply at all times.
The Mistral Combi Standard Efficiency boiler range provides for a highly efficient full heating and instant domestic hot water facility. If you are in any doubt about water performance, our CC4 can produce nearly TWICE as much as hot water anyone else`s Combi.

The multi-directional flue outlet options together with pre-punched pipe entry points on both the sides and the back allow for easy and quick installation. The removable front casing permits easy access for commissioning and future service. Backed by the Mistral guarantee of quality the Combi Standard boiler range provides a practical heating and hot water facility for the small to mid-size home.
To ensure maximum efficiency, the Mistral Non-Condensing range is manufactured using the same centrally located Y Section waterway heat exchanger, as used in the High-Efficiency Condensing models. With the exception of the top mounted condensing unit, all components used, are the same for both, ensuring maximum benefit, efficiency and construction advantages are maintained.
To facilitate low-level options, a spacer is available in place of the Condensing unit.
** Please see our section headed Condensing / Non-Condensing, to ensure that these products are suitable for your property.

Not sure what boiler you need?
What kind of flue do I need?
CE Complies with the EC low voltage and electromagnetic compatibility and efficiency directives.
Gastec With high efficiences and low emissions the Mistral range of oil fired boilers are environmentally friendly and as a result economical to run.
British Flag All Mistral Boilers are British Made Quality Products so you can be assured of quality.
iso All our manufacturing is carried out under a stringent quality control system to ISO9001.
